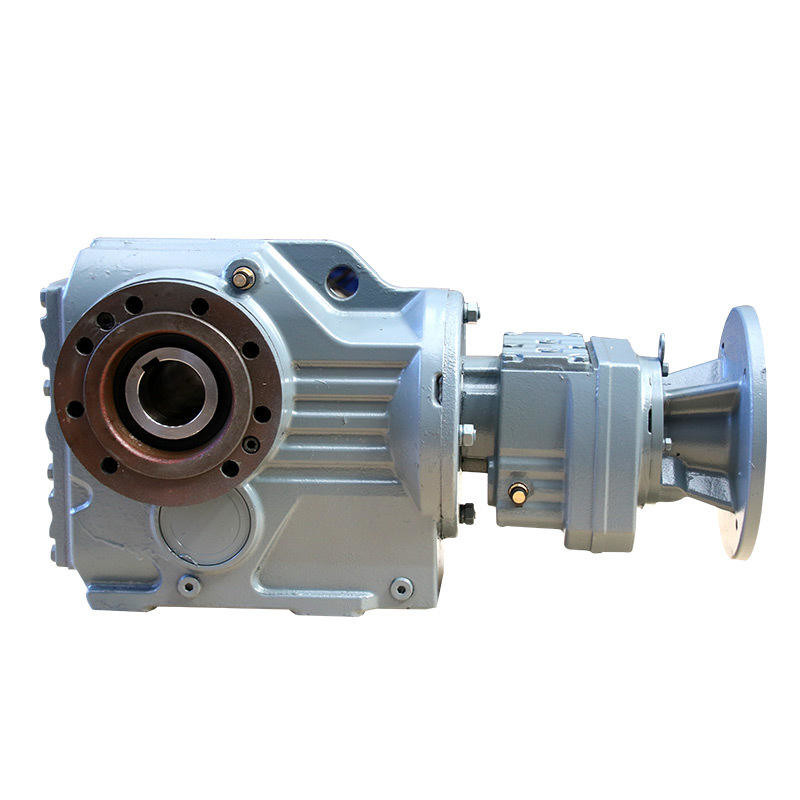

Single Stage Bevel Vertical Helical Gearbox Reducer With AC Motor

Name: Single Stage Bevel Vertical Helical Gearbox Reducer With AC Motor
Brand: FANBAO
Price: 1 USD

Quality Single Stage Bevel Vertical Helical Gearbox Reducer With AC Motor for sale

Brand Name : FANBAO

Model Number : K KA KF KAF

Certification : CE

Place of Origin : china

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100sets per month

Delivery Time : 8-15work days

Packaging Details : standard export wooden case

Gearing Arrangement : Helical-Bevel Gearmotor K Series gear reducer with AC motor Hard Face Gear Reducer

Output Torque : 50000N.m

Input Speed : 600~1800rpm

Output Speed : 280 rpm

Weight (KG) : 60kg

Warranty : 1 year

Color : customer Requirement

Ratio : 5~180

Size : K KA KF KAF KAZ KAT KAB

Efficiency : over 95%

Gear material : 20CrMnTi

Housing material : HT250 high-strength cast iron

Input ways : Motor input, AM (IEC) flange input, and shaft input

output way : solid shaft output or hollow shaft output

Motor type : AC motor

Contact Now

Helical-Bevel Gearmotor K Series gear reducer with AC motor Hard Face Gear Reducer

Description :

Our K series helical gear reducers embody a fusion of standardization and modularization, ensuring compatibility with top global brands while upholding structural robustness and space efficiency. Capitalizing on the precision of helical gears, these reducers achieve a remarkable 90% operational efficiency, delivering heightened stability and decreased noise levels. Featuring three stages of reduction, they offer a broad ratio range from 1/8 to 1/215, outperforming worm gear counterparts. Supporting power ratings spanning from 1/4hp to 60hp, these units cater to diverse applications. Crafted from 20CrMo alloy steel with carburizing heat treatment, the bevel and helical gears excel in performance. With a 90° transmission angle and compact design, these reducers optimize mounting space and allow for flexible installation positions (M1~M6) as per customer specifications. Their contemporary aesthetics blend seamlessly with high rigidity, facilitating easy connections with various motors or power sources to address a multitude of requirements. Moreover, they exhibit exceptional strength, compact dimensions, versatile ratio selections, adaptable mounting options, extended service life, minimal noise emissions, impressive efficiency (up to 95%), substantial radial loading capacity

K Series Helical Bevel Gearbox Connection code and form

Input power rating and maximum torque
Size	37	47	57	67	77	87	97	107	127	157	167	187
Structure	DK DKA DKF DKAF DKAZ DKAT DKAB
input power rating(kw	0.18- 3.0	0.18- 3.0	0.18- 5.5	0.18- 5.5	0.37 1.1	0.75- 22	1.1-30	3-45	7.5-90	11-160	11-200	18.5- 200
Ratio	5.36~ 106.38	5.81≈ 131.87	6.57~ 145.15	7.14~ 144.79	7.22- 192.18	7.19~ 192.27	8.95- 175.47	8.74 141.93	8.68- 146.07	12.66~ 150.03	17.35~ 164.44	17.97- 178.37
torgueNm	200	400	600	820	1550	2700	4300	8000	13000	18000	32000	50000
Gear motor weight
Slze	37	47	57	67	77	87	97	107	127	157	167	187
(kg) Weight	11	20	27	33	57	85	130	250	380	610	1015	1700
Thewelghts aremean values,only for relerence. )Maximum torque means theblggest oneofthe maximum torque relatedtothe dfferent ratiofor the specied size.

More reducer model for your choice :

K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187

KA37,KA47,KA57,KA67,KA77,KA87,KA97,KA107,KA127,KA157,KA167,KA187

KF37,KF47,KF57,KF67,KF77,KF87,KF97,KF107,KF127,KF157,KF167,KF187

KAF37,KAF47,KAF57,KAF67,KAF77,KAF87,KAF97,KAF107,KAF127,KAF157,KAF167,KAF187

KAZ37,KAZ47,KAZ57,KAZ67,KAZ77,KAZ87,KAZ97,KAZ107,KAZ127,KAZ157,KAZ167,KAZ187

KAT37,KAT47,KAT57,KAT67,KAT77,KAT87,KAT97,KAT107,KAT127,KAT157,KAT167,KAT187

KAB37,KAB47,KAB57,KAB67,KAB77,KAB87,KAB97,KAB107,KAB127,KAB157,KAB167,KAB187

Mounting position and Position of the motor terminal box :

Single Stage Bevel Vertical Helical Gearbox Reducer With AC Motor

Single Stage Bevel Vertical Helical Gearbox Reducer With AC Motor

Application :

K series process :

Packing and shipping way :

Why choose us ?

1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
